When it comes to natural disasters, geodesy plays an important role in understanding hazards and informing mitigation efforts. While we can’t predict when an earthquake will occur—we can only estimate the probability of an earthquake occurring within a longer timeframe—geodesy allows us to gain a better idea of where future earthquakes will occur and how severe they could be.

An earthquake occurs when a fault quickly “slips,” meaning that the rocks on either side slide past each other. At depths in the Earth’s crust where earthquakes are possible, friction normally keeps a fault locked in place. It’s only when stress builds to the point that it overcomes friction that a fault can move, releasing that accumulated energy as seismic waves. The hypocenter (or focus) is the spot on the fault below the surface where an earthquake begins. The epicenter is the location on Earth’s surface directly above the hypocenter—where you mark the location on a map, in other words.

This process of accumulating and releasing energy is called the seismic cycle. This is not a cycle in the way that the Sun predictably rises and sets—earthquakes do not adhere to a schedule. Instead, the seismic cycle refers to the way earthquakes eventually repeat on a specific section of a fault.

Elastic materials can return to their original shape after being deformed—and this is actually what rocks do at faults. During the inter-seismic phase of the cycle, stress continually builds up as slow elastic deformation occurs. The fault itself isn’t sliding, so the rock on either side must deform to accommodate the continuous tectonic motion. The co-seismic phase is the exact moment that the earthquake actually occurs and the rocks snap back into their original, undeformed shapes as the fault slips. This motion will be the reverse of what we see during the inter-seismic phase. Once the rock fully relaxes and adjusts to this sudden change, the cycle transitions back into the inter-seismic phase of accumulating stress.

Although we often illustrate faults with geometric blocks that make it seem like the entire fault slips during an earthquake, in reality only a portion of the fault moves. If you represent the fault plane with a sheet of paper, you could draw a circle around the portion that slipped, with the rest of the plane remaining locked. The larger the magnitude of an earthquake, the larger this portion is, and the greater the slip movement within it.

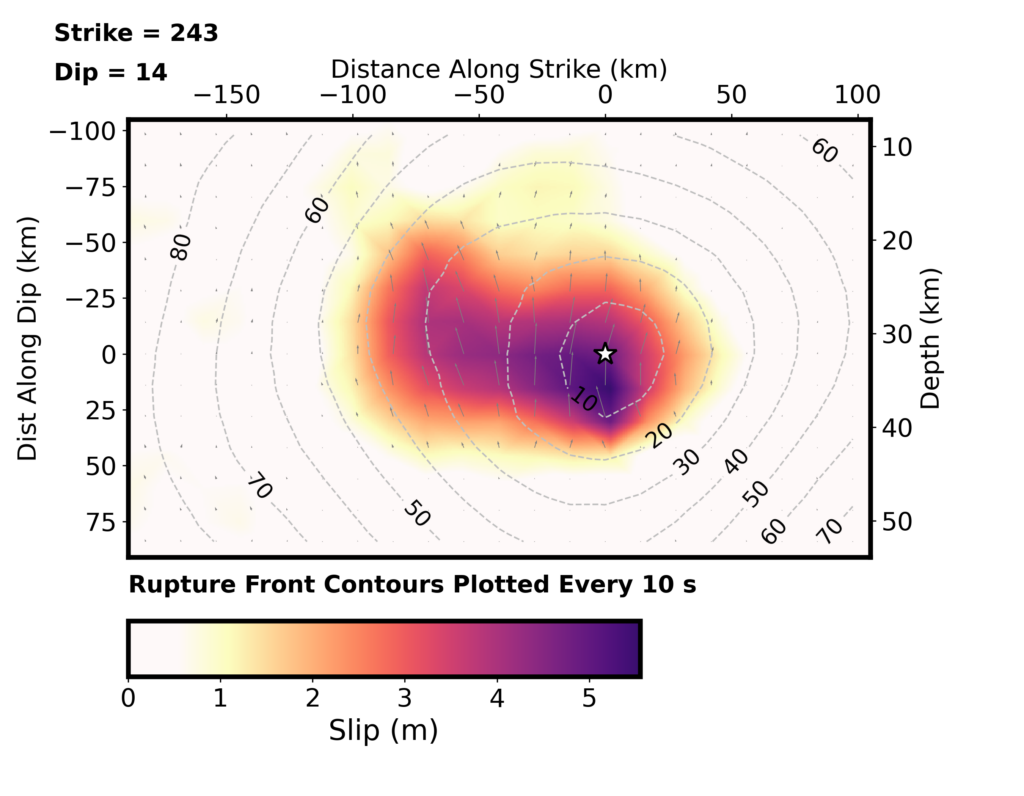

For example, the figure below represents the estimated fault slip during the July 28, 2021 magnitude 8.2 earthquake in Alaska. The horizontal axis follows the length of the fault, while the vertical axis follows the plane of the fault down into the Earth. The slip began at the star (the hypocenter) and expanded outward, with the amount of slip gradually decreasing to zero as it propagated away from the hypocenter. The dashed contour lines show the number of seconds it took for the slip area to expand to its final extent.

figure showing modeled rupture area of fault
Source: USGS

This is important because aftershocks and future earthquakes can occur at the edges of the slip area, as the movement nearby further focuses stress on that spot—like the movement of a zipper pull that stopped halfway down a jacket, partly separating a particular pair of teeth. In order to accurately understand the evolving seismic hazard along a fault, we need to know exactly which portions have slipped in each earthquake.

Go Deeper: Faults & Plate Boundaries

Earthquakes ultimately occur because the Earth’s crust is fragmented into tectonic plates. The edges where the plates meet are known as plate boundaries. Tectonic plates move slowly in relation to one another, usually on the scale of a couple centimeters per year. The edges of the plates are rough and stick together, even while the rest of the plate moves.

There are three types of plate boundaries:

Divergent boundaries

At this boundary, plates move apart from one another like conveyor belts moving in opposite directions. Magma rises beneath this boundary, continually building new crust. Frequent and small earthquakes can occur at the fractures that are created when the plates pull apart, and divergent boundaries are marked by volcanism. Mid-ocean ridges and the East African rift are examples of divergent boundaries.

Convergent boundaries

This is the opposite of a divergent boundary, with tectonic plates moving towards one another. When two plates collide in convergent boundaries, mountains and fold belts are created because rock is squeezed together and pushed upwards. A convergent boundary between the Indian and Eurasian plate forms the Himalayas, where the Eurasian plate is pushed and crumpled atop the Indian plate.

Convergent boundaries between oceanic and continental plates (or two oceanic plates) are responsible for subduction zones. The much denser oceanic plate sinks, or subducts, below the continental plate. When the oceanic plate subducts, earthquakes can occur where the two plates meet as well as within the subducting slab. Subduction zones produce the deepest earthquakes, and can also produce extremely strong earthquakes—as well as tsunamis. Subduction zones also create lines of volcanoes, as water released from the subducting slab causes the surrounding deep, hot rocks to melt, producing magma that rises to the surface. An example of a subduction zone is the Peru-Chile trench, where the oceanic Nazca plate is subducting underneath the continental South American plate.

Transform Boundary

At a transform boundary, plates move past one another laterally. Here earthquakes are created at shallow depths. The San Andreas fault is an example of a transform boundary.

Similarly, there are three basic types of faults—fractures between blocks of rock where movement has occured. A fault could be anywhere from a few millimeters long to thousands of kilometers, and movement at faults can occur quickly (in an earthquake) or slowly (as a gradual process called creep). Tectonic plate boundaries are often actually a complex set of smaller faults.

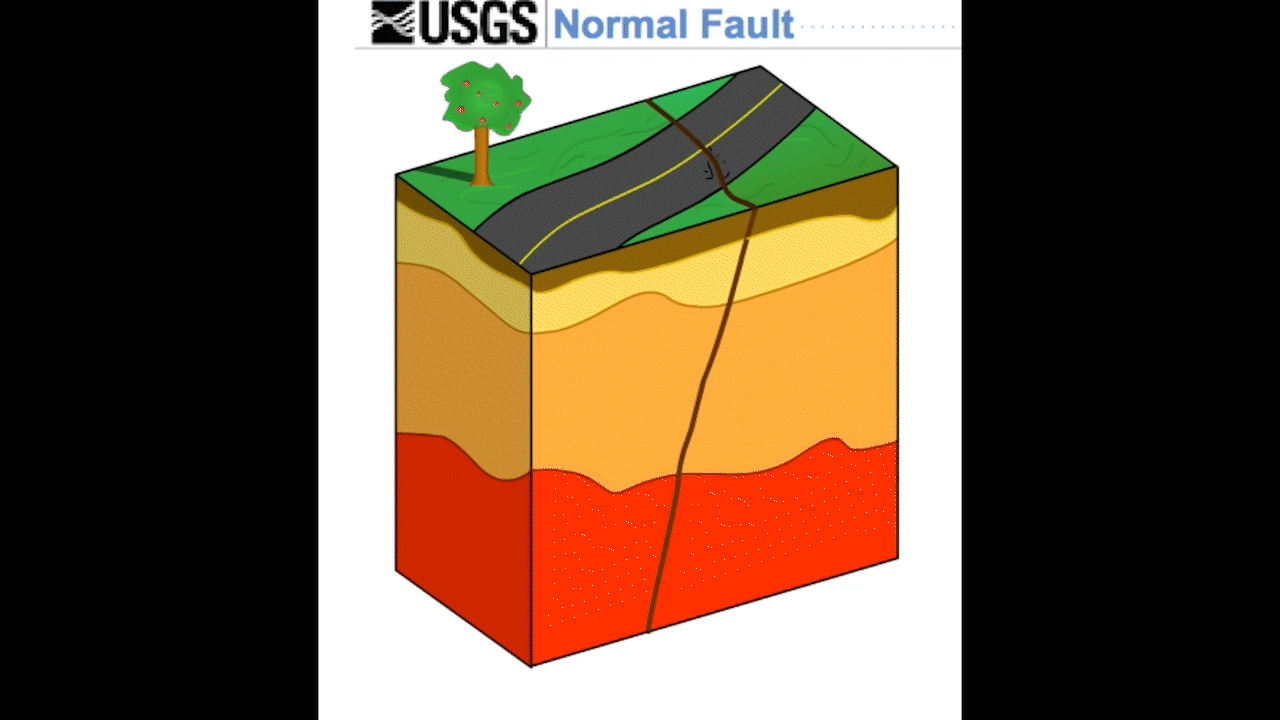

Normal faults

At a normal fault, one block “above” the fault slides downward in relation to the other block. This type of faulting is associated with extension—not unlike removing bookends and allowing the row of books to spread out.

fault animation

Reverse faults

At a reverse fault, one block “above” the fault plane is pushed upward and over the lower block. This type of faulting is associated with compression.

fault animation

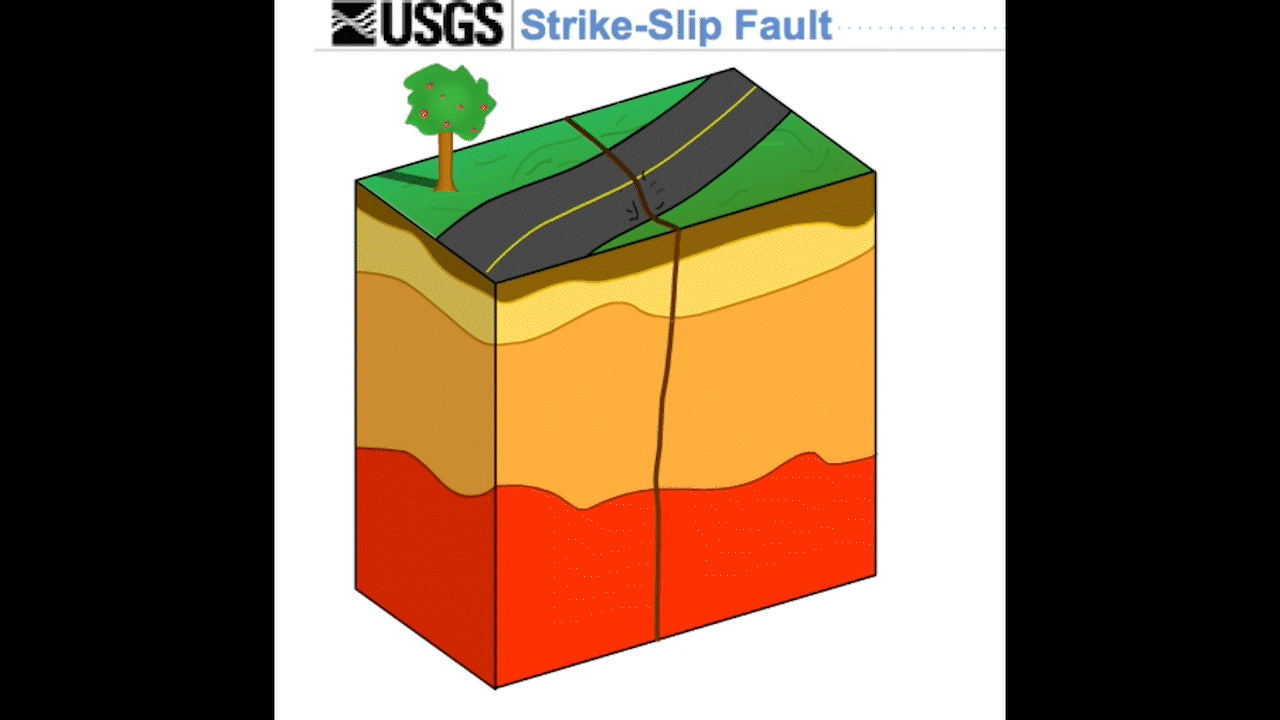

Strike-slip faults

At a strike-slip fault, the two blocks slide past each other horizontally. In a left-lateral strike-slip fault, the displacement of the far block is to the left. In other words, a person standing on one side of the fault would see that everything on the other side has moved to the left. At a right-lateral strike-slip fault (like the San Andreas), the displacement of the far block is to the right.

fault animation
Fault: Strike-slip direction (left lateral and right lateral)- Incorporated  Research Institutions for Seismology
Source: IRIS

Earthquakes generate body waves that travel through the Earth: compressional (P) waves and shear (S) waves. P waves vibrate in the direction of propagation—like sound waves—travel fastest, and arrive first after an earthquake occurs. S waves that oscillate perpendicular to the direction of propagation—like a plucked guitar string—travel ~60% as fast as P waves, and so arrive after P waves. These body waves lose their amplitude quickly since their energy is spread out through the volume of the Earth. On the other hand, surface waves like Love waves and Rayleigh waves are the last waves to arrive but have much larger amplitudes than the body waves. These are generally responsible for the most damaging shaking after an earthquake.

Geophysical tools like GPS instruments, InSAR data, and seismometers allow us to closely track deformation and fault slip. This helps us understand local seismic hazards so communities can take steps to protect infrastructure and prepare to effectively respond to damaging earthquakes. Additionally, networks of GPS stations and seismometers can power earthquake early warning systems that can alert people before shaking arrives at their location—giving them critical seconds to take protective actions.
