UNAVCO IDV InSAR Data and Displays UNAVCO IDV InSAR Data and Displays

InSAR images can be displayed in mapped views. Since there is no standard for InSAR interferogram image formats, they are treated like other images in the IDV for Earth-location.

The advantage of InSAR displays in the IDV is that you can include most any other geophysics data in the same display, and use the interactive 3D controls to find and show relations betweem the InSAR and other phenomena. You can also drape the imagery over 3D topograhic relief (high quality topography data is easily available with the IDV ; see Topography Data Sources for the IDV ).

The interferogram image shown here is provided to UNAVCO by John Bell, University of Nevada, Reno.

click for larger size
IDV display with InSAR image draped over 3D terrain relief. Vertical terrain exaggeration is 4 times.

click for larger size

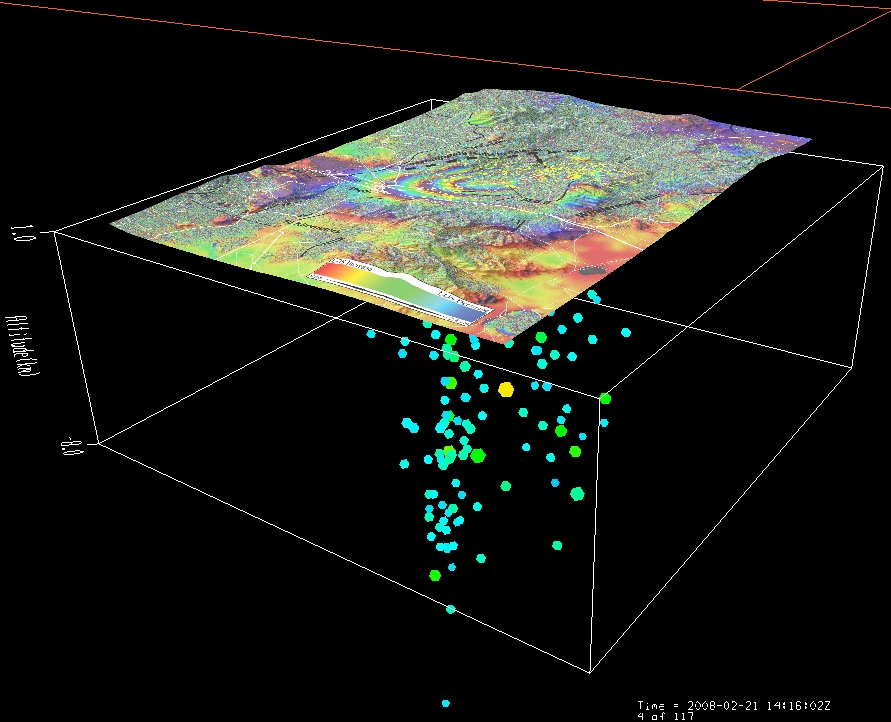

IDV display, 3D oblique from the southeast, with InSAR image of Wells, Nevada, area by John Bell, University of Nevada, Reno, draped over 3D terrain relief, and 117 earthquake hypocenters; 112 occured after the Feb 2008 main shock. Epicentral data are from the IRIS Earthquake Browser.

Quicktime movie of the above INSAR display

Learn more about TIF Images and TIF over Topography in 3D relief in the IDV, and learn about Images mapped with latitide and longitude.
